Product detail · Raman sensor

Raman EYE

A hybrid Raman sensor for both process and microscope measurement. Choose your excitation source — 532 nm (green), 785 nm (red) or 830 nm (near-infrared) — and measure a wide range of materials, fast. As the world's smallest process & microscope Raman sensor it mounts on any platform, configured to fit your environment and equipment.

532 / 785 / 830 nm process & microscope wireless export rental available

See rental plans See specifications

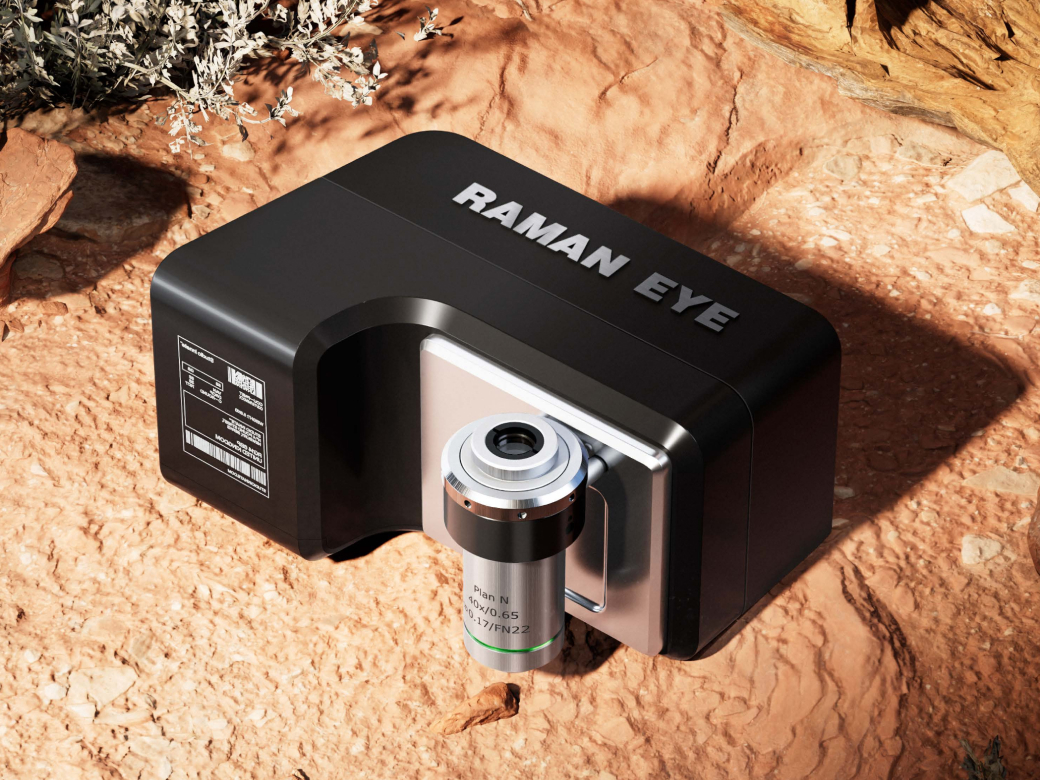

RamanEYE hybrid Raman sensor with microscope objective, in the field

Measure on-site — even outside the lab

Key features

✓Remote operation from a smartphone

✓The world's smallest microscope Raman spectroscopy sensor

✓Automatic analysis powered by generative AI

✓Around one-tenth the price of conventional systems

✓Hybrid model supporting process Raman

Technology

Attached Raman sensor technology

Innovative sensing technology, now available in a palm-sized product. We have reduced introduction costs to roughly one-tenth of conventional levels, and the device can be incorporated into existing equipment immediately — giving you sensing capability without being tied to a specific location. Through dramatically improved smartphone operation and user interface, anyone can easily understand analysis results without specialized expertise. Equipped with AI-powered automatic learning, it enables more efficient analysis than conventional methods. Designed to serve a wide range of users, this is a revolutionary product that lowers the barrier to measurement.

How it's used

From measurement to analysis, on the spot.

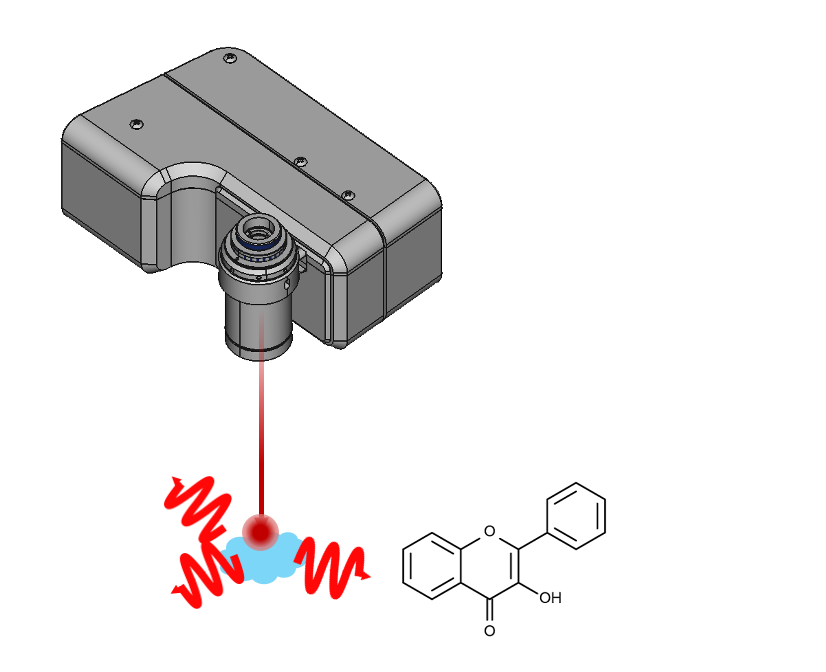

RamanEYE sensor measuring a sample with its laser, identifying the molecular structure

Rapid measurement across materials

Select the excitation source from 532 nm (green), 785 nm (red) or 830 nm (near-infrared) lasers, and realize rapid measurement across a wide range of materials.

Conversational operation: the sensor responds to natural-language requests

Conversational measurement

A conversational measurement and analysis-automation system powered by generative AI — operate your instruments interactively, in natural language.

Generative-AI analysis agent

Chat your way to interpreted data.

As your data-analysis support agent, it processes your data properly and helps you interpret it — upload spectra, identify substances, plot concentration graphs and even draft slides, all in one conversation.

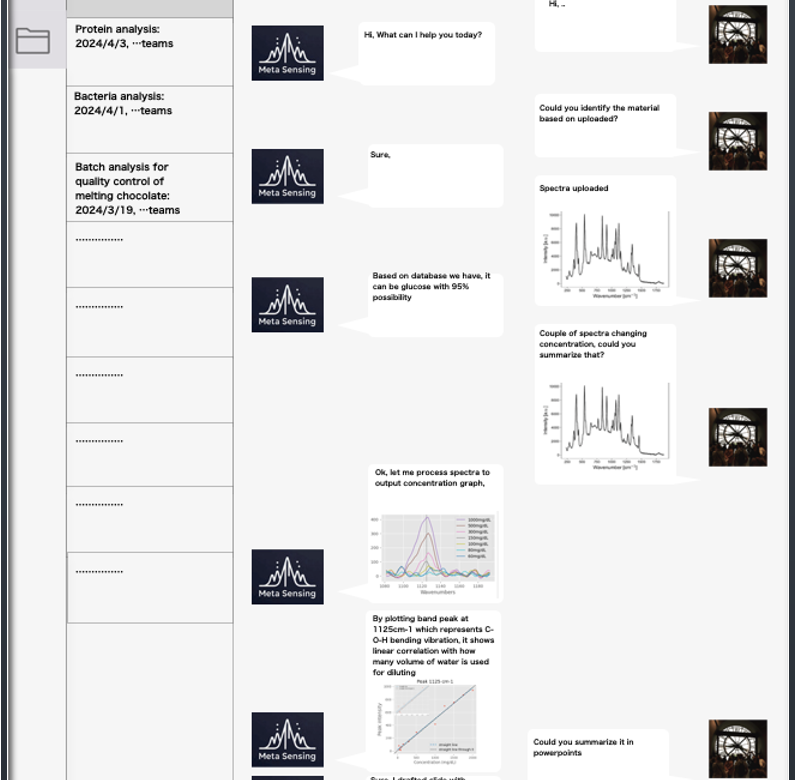

MetaSensing AI chat: uploading spectra, identifying glucose at 95% probability, plotting concentration graphs

Rental plans

Available for rental.

Choose your rental period and options.

Rental period

RamanEYE unit

Always included in a rental

¥290,000

Options

Contact-measurement probe ¥40,000

Fiber probe ¥100,000 Transmission probe for tablet pharmaceuticals

Transmission probefor tablet pharmaceuticals ¥150,000

Inverted-microscope adapter ¥100,000

Total

¥290,000

Excl. tax & shipping — finalized in your quote.

Request this rental

Specifications

Main specifications by model

	Raman EYE	Raman EYE Pro	Raman EYE Sensitive Plus	Raman EYE Scan Pro
Excitation wavelength	532/ 785/ 830 nm	532/ 785/ 830 nm	532/ 785/ 830 nm	532/ 785/ 830 nm
Average output	40/ 200/ 250 mW	40/ 200/ 250 mW	40/ 200/ 250 mW	40/ 200/ 250 mW
Spectral resolution	27/ 50/ 80 cm⁻¹	8 cm⁻¹	16/ 8 cm⁻¹	8 cm⁻¹

Ask us about this product.

Demos, rentals, quotes — we're happy to help.
